什么是模块化?
在办公环境规划中,一个模块基本定义为具备自我功能的单位,且可以进行替换或重新组合。模块化同时也代表在整个规划中,将某个空间作为一个模组,而该空间及其支持系统能够重新组合。
尽管模块化可以用作任何办公环境的规划工具,通常较大面积的办公空间会随着时间而进行一些改变。而在这种空间的转变过程中,往往会影响技术设备、建筑设施和一整套不便于进行改造的系统,不止是看得见的隔墙或家具而已。
采用模块化设计作为办公环境规划的基础理念,能够消除这些因欠缺这方面考虑的系统可交替性的影响。
模块化的实际应用
“建筑模块”。开始进行模块化理念的空间规划,我们通常会从小单位入手然后拓展至更大的用途。
Access & Security

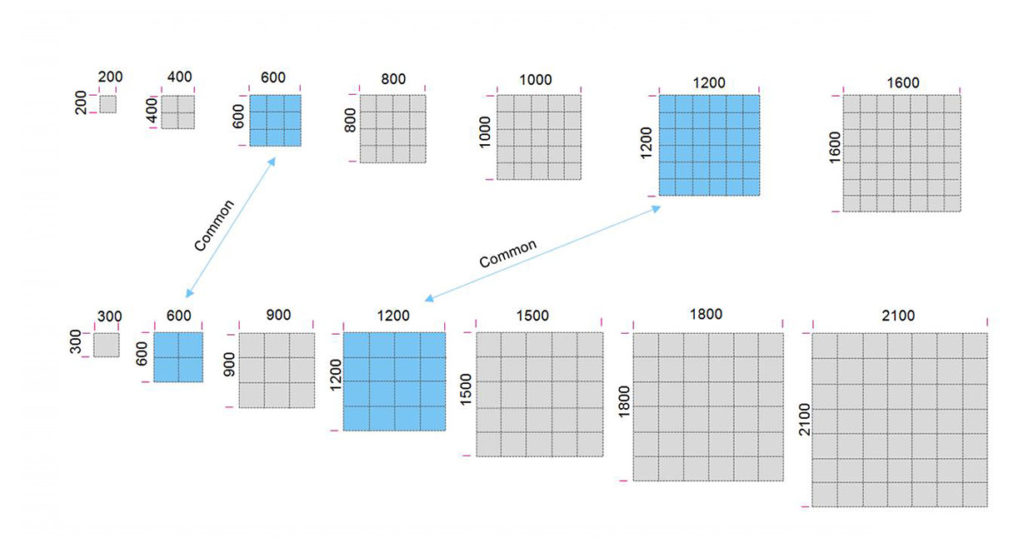

As shown here, the smallest units likely to be used are either 200 or 300mm. As we build these up, we see that the areas of 600x600mm and 1,200x1,200mm are common to both sequences. It is no coincidence that many building are based on these measurements, as are systems like offices’ ceiling grids.1800 x 1800 WS

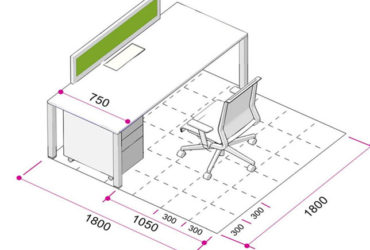

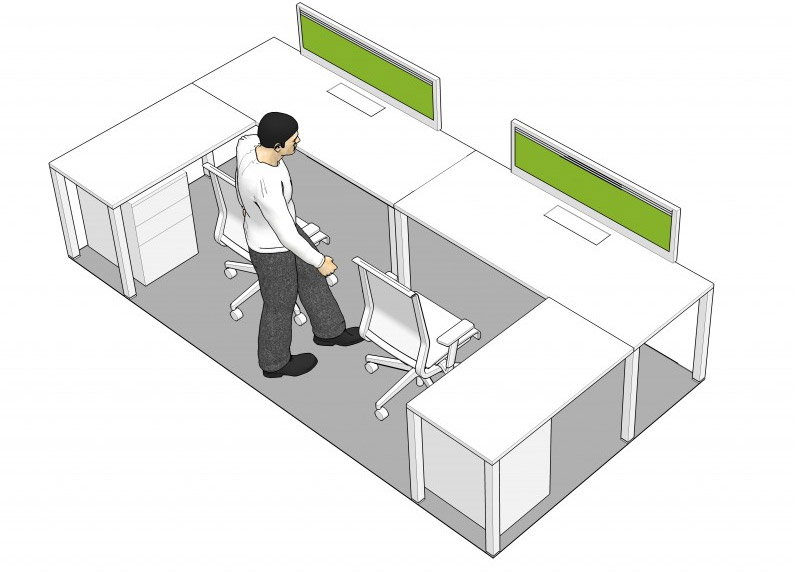

The smallest functional modular unit we are likely to encounter is simply a desk or space for one person. Below, we look at how different desks can be used in the context of a 300mm module.1800 X 3600

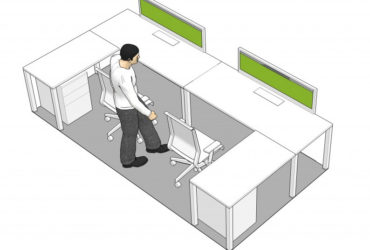

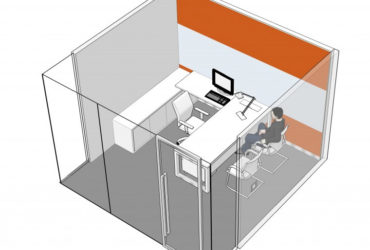

From this basis, we can double the module and begin exploring variations in arrangement and usage.3600 X 3600 Office

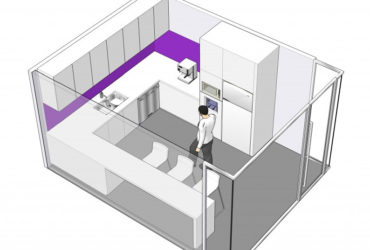

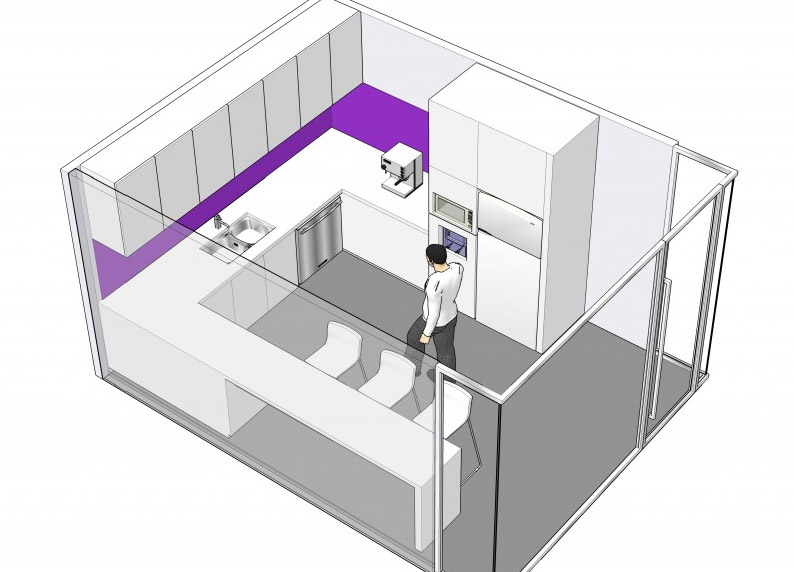

M Moser Developing our subsequent plan on the basis of our original module – in this case any space divisible by a module of 300mm – we can start expand the space, consider different uses for it, and decide whether it should be enclosed, partially enclosed, or open.4800 x 3600 Office

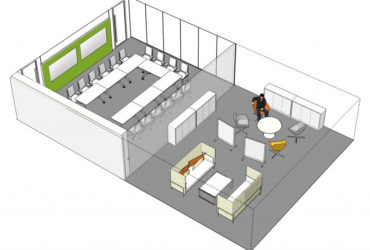

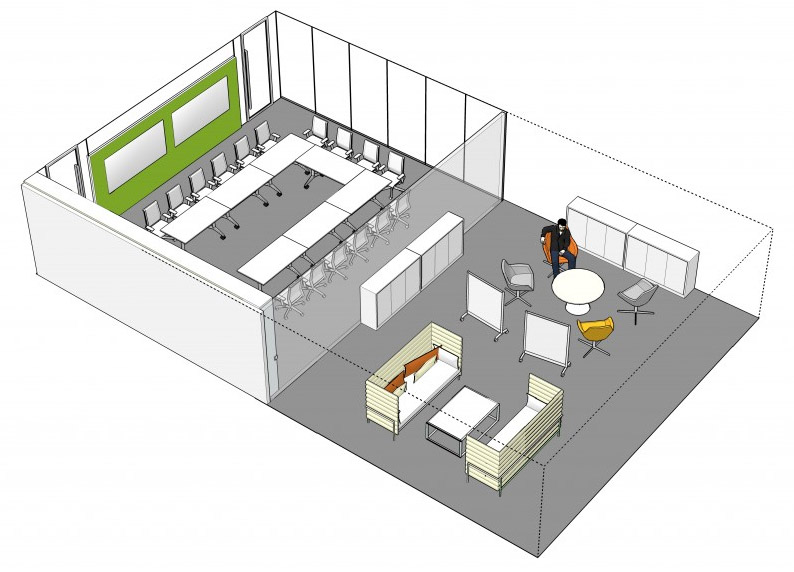

The more things you plan based on the original module (eg, meeting spaces, open-plan groups, pantries, etc), the more likely it is that you will have an easier time re-planning in the future.14000×9000 Offices & Workstations
The same basic module can also be used as the basis for multifunctional areas, open and enclosed spaces, and can even accommodate freeform or curved areas within their grid*. The possibilities are almost limitless. *Technically, modules can be any shape, but rectangular or square modules lend themselves most readily to rectangular buildings with rectangular or square office tiles.进一步的考量与启示。
当然,并非所有元素都需要成为模块,而且很重要的是记得模块化的主要目标是提供办公环境内部规划潜在变更的基础。
如果根本没有变更或改造会发生,那么模块化的切入点就不见得是最佳考量了。
为了达到最大化的削减经济成本并为潜在变更留出最大的可能性,模块对办公环境支持系统的网格效应必须仔细斟酌。电力和数据网络如何布局?设计的制热系统、空调系统、照明系统和消防系统如何才能应对可能产生的变更?而且最基础的,模块化与建筑结构韵律的和谐共存;是遵照幕墙结构、建筑结构还是天花网格?
这些意味着当面对既有建筑租用单位的情况,您的设计团队必须对这些重复元素进行仔细的考量,而且在大部分案例中,采用建筑网格作为基准是常规策略。
假设如果您面对的不是既有建筑呢?如何才能明确您的商业需求能够被完全满足,又或者设计的模块、模块化设计的建筑基底无法完全满足您的需求,必须做出妥协或让步?
穆氏拥有完善、有效的解决方案:“由内而外”的设计理念,而非常规的由外至内。
由内而外的设计方式并非模块化设计中必要的策略,却是由室内空间出发,先针对用户的真实需求量身定做之后,再进行建筑设计:完全以建筑服务于客户需求为基准。
模块化可能是提升建筑品质的重要因素之一,毕竟所有大型作品皆由小型的模块组成。这就是模块化设计的精华所在,同时也是一切给未来留下了巨大弹性的空间或建筑的真正核心。
它由最小的单位模块开始,足以成长出任何成果。
